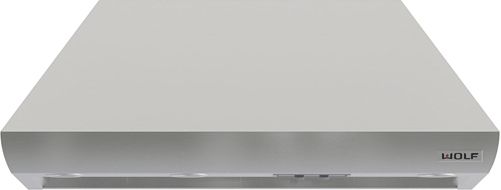

Wolf® 48" Stainless Steel Pro Chimney Wall Ventilation


Model #:

PWC482418

Model #: PWC482418
3093
Wolf
$99,999.00

At a Glance

Product Dimensions 18"h x 48"w x 24"d

Wolf® 48" Pro Chimney Wall Ventilation with stainless steel finish and halogen lightingRead More

Call for Best Price

Get to know this product.

Product Overview

Product Overview

Stainless steel finish.

Heavy-duty, 16-gauge brushed stainless steel with continually welded seams, hemmed edges and sides.

Stainless steel enclosed liner.

Recessed easy-access controls.

Infinite-speed blower control.

Heat sentry feature automatically turns unit on when heat is sensed and automatically adjusts blower speed.

Halogen lighting with two settings.

Removable, dishwasher-safe, restaurant grade stainless steel baffle filters.

Transition with backdraft damper included

Useful Documents
Specifications

General Specs

Width (in.)48
Height (in.)18
Duct Size (in.)10
Depth (in.)24
ColorStainless Steel
PositioningStationary
Color Finish NameStainless Steel
Range Hood TypeWall Mounted
ENERGY STAR CertifiedNo
Appliance Fit Width (in.)48
Maximum CFM1500
Amp15
Frequency60
Ventilation TypeDucted

Construction

Exhaust:Ducted
Chimney:Fixed
Ductwork Type:Vertical

Dimensions

Shipping Weight:106
Depth, Chimney :13.5
Max Height Above Cooktop:36
Min Height Above Cooktop:30

Display

Controls:Mechanical

General Features

Filter Type:2 Washable Grease Filters
Pollutant Removal:Externally Vented

Other

Considerations:Blower options vary with the cooking surface. Use only a Wolf blower with the Pro wall ventilation hood.
Settings:2
Air Mover(s) Speed:Infinite

Styling

Design:Canopy Pro Style
WarningProposition 65 Warning for California Residents
